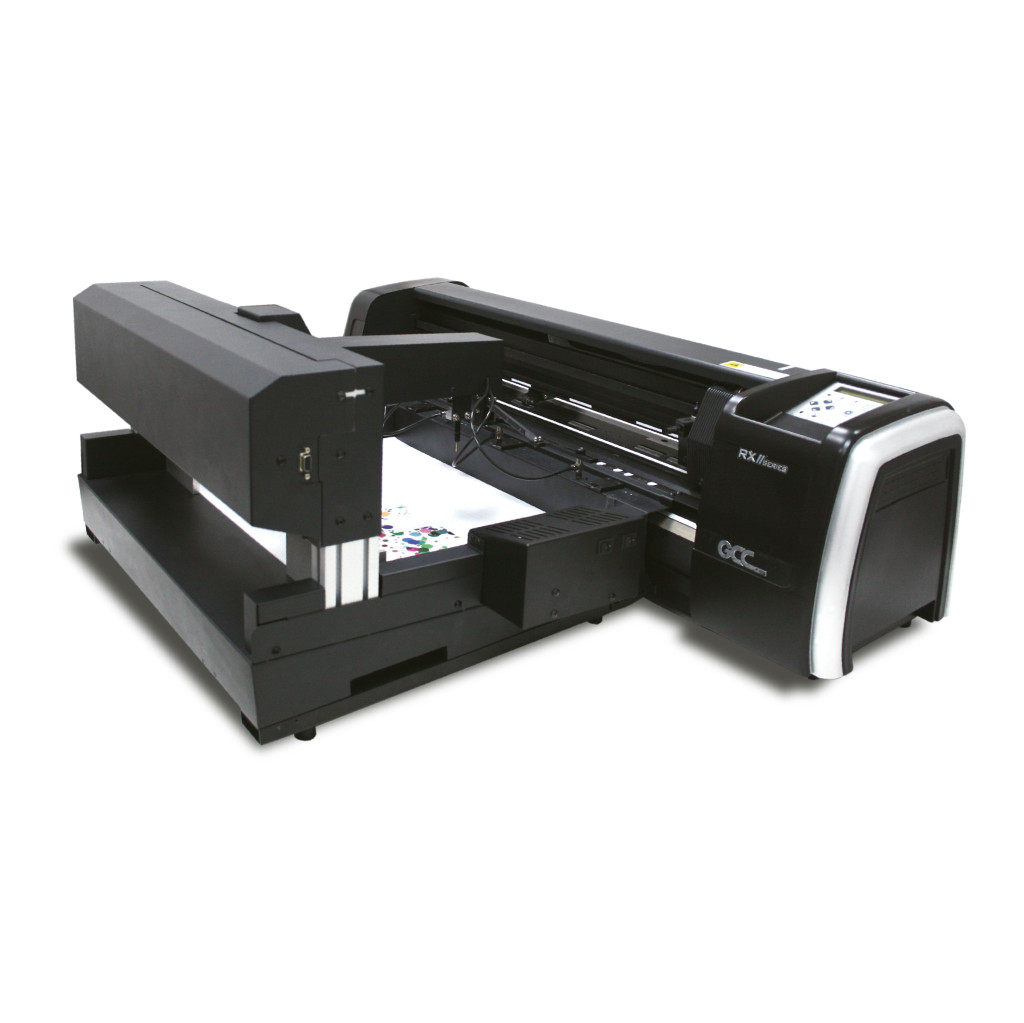

GCC AFR 24S automatic label cutting machine
4 202.00 €+ VAT (5 336.54 €)
GCC AFR 24S automatic label cutting machine
4 202.00 €+ VAT (5 336.54 €)
Shipping time :
1-2 weeks
Fast, powerful automatic sheet-fed label cutting machine: RXII cutting plotter with contour cutting option + flatbed.
Media standard support up to B2 size
Capacity: up to 50 mm (e.g. 250 sheets 150g/m2)
Details
Fast, powerful automatic sheet-fed label cutting machine: RXII cutting plotter with contour cutting option + flatbed.
Product features
- Automatic contour cutting + creasing option
- Automatic feeding
- Media standard support up to B2 size
- Capacity: up to 50 mm (e.g. 250 sheets 150g/m2)
- Adjustable media tray
- 4 pressure rollers for stable movement of the substrate
- Media separation mechanism to avoid paper jams
Similar products
Videó
Specifications
Supported media size: A4, SRA4, A3, A3+, SRA3, A2, A2+, B3, B2, 8.5 x 11 in. (215.9 × 279.4 mm), 8.5 x 14 in. (215.9 × 355.6 mm), 11 x 17 in. (279.4 × 431.8 mm), 12 x 18 in. (304.8 × 457.2 mm), 13 x 19 in.
Capacity: up to 50 mm (eg. 250 sheets 150g/m2)
Interface: USB 2.0 (Full Speed), Serial (RS-232C) and Ethernet
Power source: 100 to 240 V AC (It is required three-prong outlet.)
Power consumption: Max. 251.8 watts
Cutting speed: Max. 1,530 mm/s (at 45° direction)
Acceleration: Max. 4.2 G
Cutting force: Max. 600 g
Auto feeder unit supported media: Width: 279 to 500 mm, Length: 210 to 700 mm (Extend to 700 mm length when the optional extension table is installed.)
Auto feeder unit capacity: Up to 350 g/m2
Operating environment: Temperature: 15 to 30°C/60°F~86°F, Humidity: 25 to 75 % RH (non-condensing)
Dimensions (W x D x H): Approx. 1098 x 1140 x 782 mm
Weight: Approx. 47.5 kg (Cutter unit: 25.5 kg, Auto feeder unit: 22 kg)
