Mutoh XpertJet XPJ-1642WR PRO waterbased/sublimation printer

Shipping time:

2-3 weeks

Request for quotation

Wide format 160cm roll-to-roll waterbased printer for sublimation printing and pigment/dye ink photo printing. 100% Japanese quality, up to 61 m²/h print speed!

Complete system: printer + ink + RIP software + Full service

MUTOH: Japanese precision and constant development

Mutoh is one of the world's leading manufacturers of wide-format digital printers and cutting plotters, which are all designed and manufactured exclusively in Japan, from the consumables to the very last screw. With numerous sales points in Europe, the Middle East and Africa, the brand name is now synonymous with stable quality and reliability.

Japanese Mutoh values precision and high quality through craftmanship – in contrast to the accelerated production which results in poor quality typical of Chinese brands. From the engineering design of new products, through the assembly by expert colleagues, to the improvement of existing products, the entire process implements the Japanese Kaizen philosophy, the central idea of which is the pursuit of continuous improvement. The company, founded in 1952, is therefore not stuck in the past: with seventy years of experience behind them, they are constantly working to provide state-of-the-art technological solutions.

Print at the speed of light!

Mutoh XpertJet 1642WR PRO waterbased/sublimation printer delivers extremely fast, flexible, reliable and high-quality production. It is the successor to Mutoh’s award winning Value-Jet 1638WX water based model providing a professional industrial solution for sublimation or sign&print businesses who don't want to compromise between productivity and excellent print quality. The robust, strongly built roll-to-roll printer with its double, staggered, new generation 1600-nozzle AccuFine print head offers an outstanding print speed of up to 61 m²/h with a print width of 1615 mm (63,58"). This is accompanied by a number of intteligent features found only in Mutoh machines which provide excellent print quality and an improved user experience.

Our offer inlcludes the original Mutoh sublimation dye inks, which are suitable for wide-format sublimation transfer printing, as well as direct printing on polyester textiles, and the the usual Full service from Signdepot.

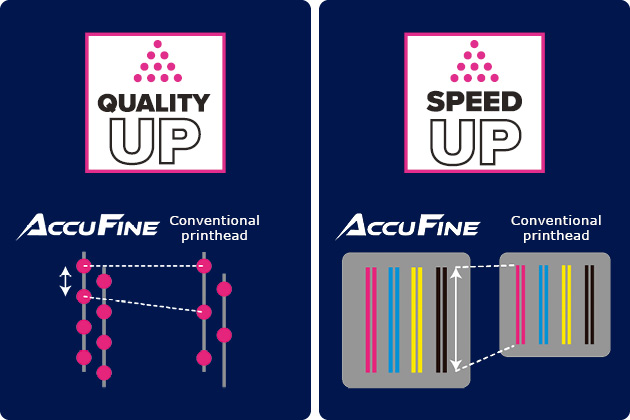

Better than ever print quality with double AccuFine printhead

Mutoh has been integrating piezo printheads since 1999. Due to decades of experience and continuous development, their printheads are now worthy opponents of the most well-known brands. The updated “PRO” model of Mutoh XpertJet 1642WR waterbased/sublimation printer is equipped with two, staggered, new generation, 1600-nozzle AccuFine inkheads, which ensure best in class drop placement accuracy even at high printing speed. Contrary to conventional printheads, AccuFine printheads have a higher density nozzle pitch contributing to higher image quality, and an increased nozzle row length, which enables higher productivity. Due to this development, Mutoh XpertJet 1642WR PRO can be print at an outstanding speed of up to 61 m²/h, the lowest available print resolution is 300x600dpi and the highest available print resolution is 1200×1200dpi.

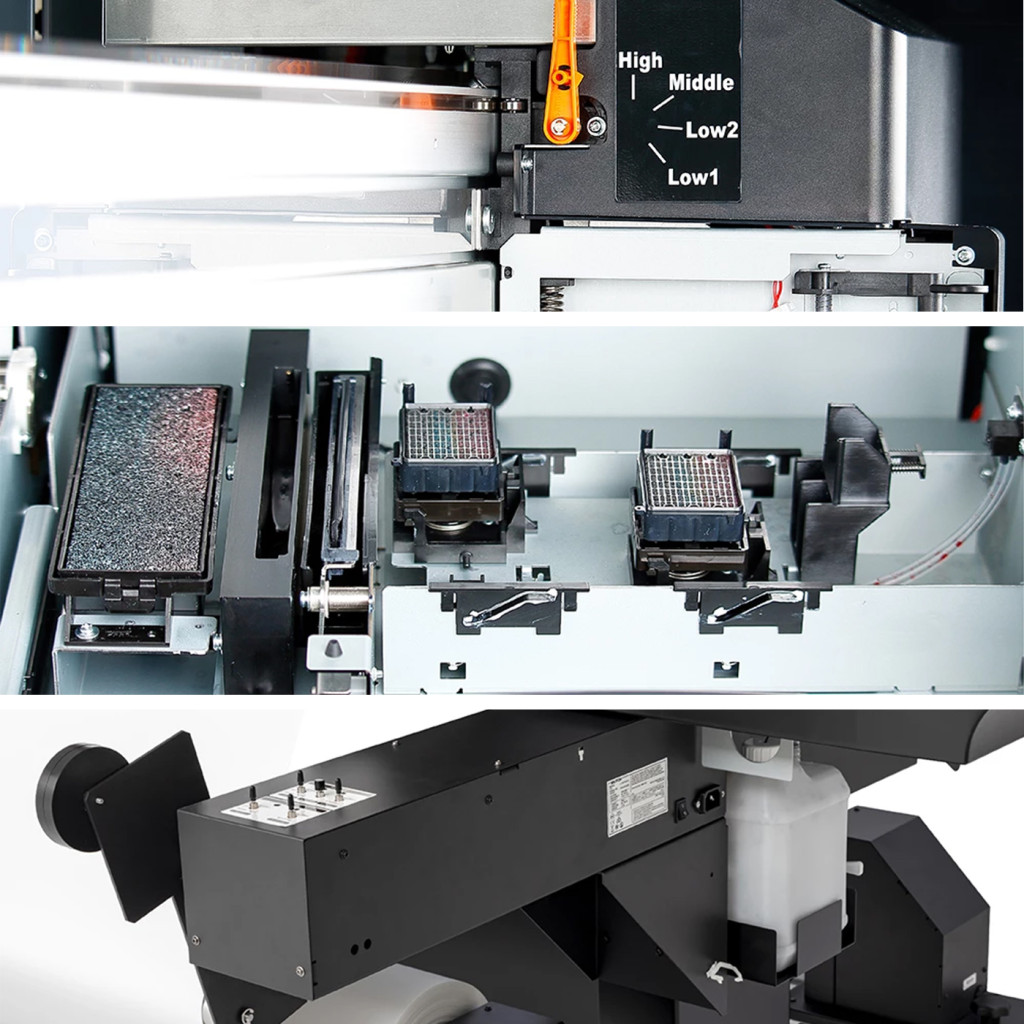

Four head heights are available ranging from 1.5 to 4 mm, which provides wide media compatibility. The Piezo Variable Drop Technology ensures perfect coverage and precise ink landing from the thinnest to the thickest materials.

Outstanding print speed

Mutoh XpertJet 1642WR PRO waterbased/sublimation printer provides you outstanding print speed in all production modes, along with print quality that is unique in its category:

Resolution	Print speed
900×1200	10 m²/h
900×900	15 m²/h
600×600	30 m²/h
300×600	41 / 52 / 61 m²/h

Forget banding, mottling and bleeding!

Maximize your profit: print fast, in an excellent quality with minimal effort! I-screen technology is the updated version of Mutoh's revolutionary development: Intelligent Interweaving (i²), optimized for AccuFine printheads. By printing a wave pattern with sophisticated screening and dot placement, it eliminates the typical errors of traditional, straight line inkjet printing.

This unique development found only in MUTOH machines

eliminates banding, mottling and bleeding
creates sharp and vibrant prints
without reducing print speed
while saving ink
and saving you time, since less set-up and attendance is required.

Intelligent features for smooth workflow

Mutoh XpertJet 1642WR PRO waterbased/sublimation printer provides high level of user comfort and stable production with its built-in intelligent features.

DropMaster2: Ensures automated bi-directional alignment across varying media thicknesses, delivering precise
prints without manual adjustments.
FeedMaster: Provides automated media feed adjustments, ensuring smooth, consistent media feeding for optimal print accuracy and reducing the need for manual corrections.
Nozzle Area Select: Eliminates downtime and provides uninterrupted printing by automatically selecting only active nozzle blocks in the event missing nozzles cannot be recovered.
Media Tracker: Prints a barcode on each roll before it is removed. Upon reloading, a laser scans the barcode to accurately measure the remaining media, eliminating guesswork and preventing disruptions during printing.

Multi-level pinch rollers

Mutoh XpertJet 1642WR PRO features newly designed pinch rollers for smooth feeding and transport of various media, including thin or slippery substrates. Each roller's pressure is adjustable for optimal performance.

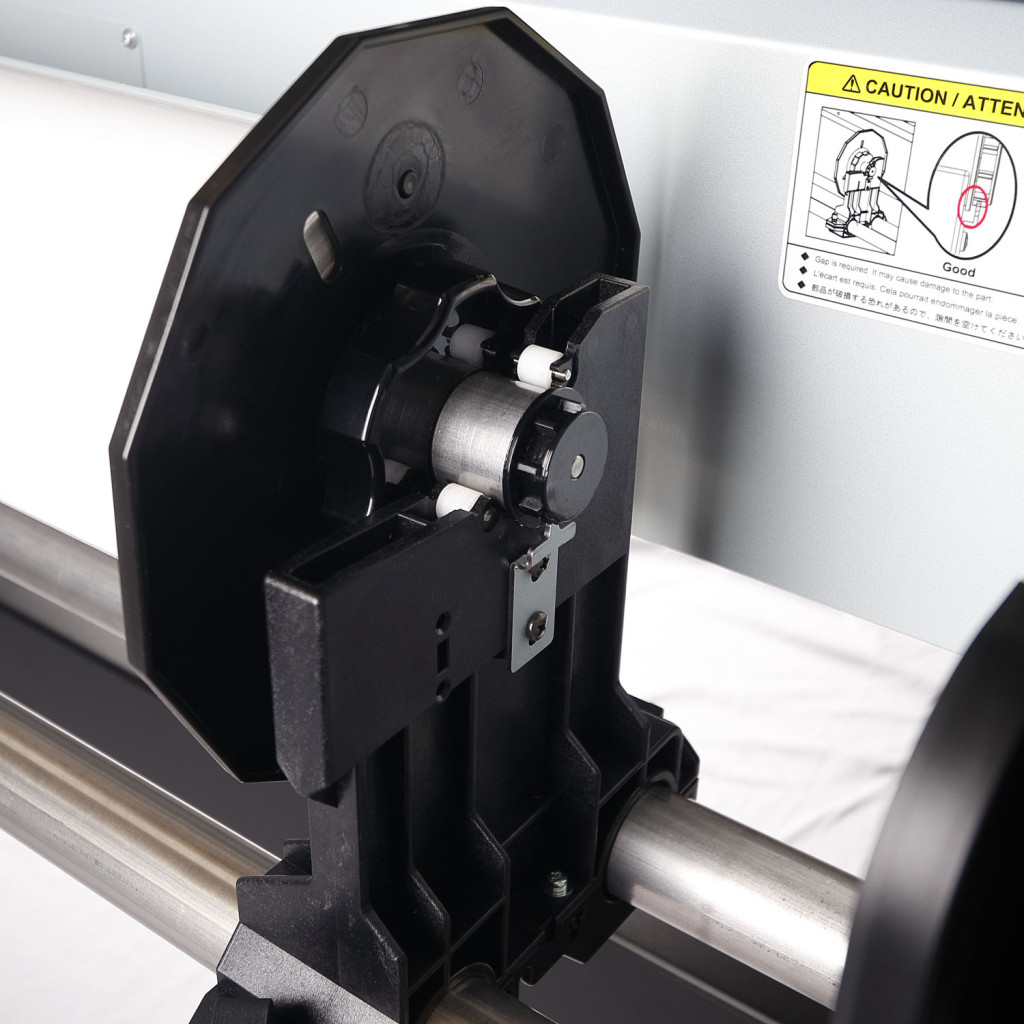

Motorised Take-up System

To optimize workflow and increase productivity, you can setup Mutoh Xpertjet 1642WR with a motorized torque controlled take-up system, which is linked to the printer and follows the start and stop of printing.

You can choose from the following options to best suit your printing needs:

30 kg / ∅200 mm roll-off system + 30 kg / ∅150 mm take-up system*
40 kg / ∅200 mm roll-off system + 40 kg / ∅250 mm take-up system
100 kg / ∅250 mm roll-off system + 100 kg / ∅250 mm take-up system

*Standard converted rolls may increase in diametre and weight during printing. To handle full rolls from start to end, a winder 40 kg is recommended.

Genuine Mutoh sublimation dye inks

The key to Mutoh's success is that all development is done in-house, resulting in 100% coordinated systems. This also includes consumables: they have developed dedicated inks tuned to specific piezo heads, covering specific applications to achieve the perfect end results. For Mutoh XpertJet 1642WR PRO waterbased/sublimation printer it's the DS3 All-Round HC Dye Sublimation ink.

All-Round: compatible with sublimation transfer paper + suitable for direct printing on polyester textiles
HC: The increased amount of colorant in the ink reduces the ink consumption, facilitates drying and
ensures compatibility with lightweight papers.
Specifically designed to ensure optimum print reliability with Mutoh’s latest generation AccuFine piezo drop on demand print heads
Extremely durable: great light fastness, washability, scratch- and abrasion resistance
High print quality, wide color gamut, extremely vibrant colors
Soft, flexible printed surface
Environmentally friendly printing – high level of operator safety

Sublimation: more vibrant colors, more durable prints

You can use Mutoh ValueJet XpertJet 1642WR PRO printer for sublimation transfer printing or direct printing of textiles with at least 80% synthetic fibres (e.g. polyester), or sublimation transfer printing of hard objects with sublimation coating. In case of sublimation transfer printing you print on roll sublimation transfer paper, from which you then transfer the ink to the substrate using a large-format heat press or a roll-to-roll heat treatment calender. The dye is transformed into a vapour by the heat treatment, so that it is incorporated directly into the molecular structure of the fibre material, producing extremely durable prints that resists environmental influences. You can produce a wide range of high quality fashion items, home decor textile, display products as well as customized unique gift products with this technology. Just to name a few: sportswear and fitness clothing items, swimwear, synthetic clothing, flags, decorative cushions, curtains and other home textiles, textile pictures, textile banners and other textile display products, as well as customized products of different scales. In case of direct sublimation printing of polyester textiles, you will also need a large format heat press roll-to-roll heat treatment calender to fix the ink, but by directly printing onto the textile, without the intermediary of the transfer paper, you spare time and money, thus increasing your productivity and profit.

Full Service

Since we plan with our customers for the long term, it is important for us to support our customers as a reliable partner from the decision making to the post-warranty service. Our Full Service means that the prices of our machines include everything:

Needs assessment, product presentation, quotation
Delivery and installation within Hungary, commissioning and training
After-sales support and service (without annual service fee!)
Plus: post-warranty service at a favorable price

Choose a reliable Mutoh partner!

Ou company, as an official Mutoh partner in Hungary, provides servicing for Mutoh printers both during and after the warranty period by our own (not provided by an external company!) trained service technician colleagues.

Signdepot has been dealing with small and large format printers and other sign making machines for 20 years. Our service technicians are trained at Mutoh factory to always have an up-to-date knowledge on the machines. We not only guarantee excellent prices but also appropriate professional support!

Ask for quotation now!

sales@signdepot.eu

Details

Signdepot is the official partner of MUTOH in Hungary from 2025.

Info

Size:

wide format

Type:

roll-to-roll printer

Brand:

Mutoh

Specifications

Model: MUTOH XpertJet XPJ-1642WR PRO
Type: Waterbased / sublimation printer
Max. printable width: 1615 mm (63.58”)
Printable materials: sublimation transfer paper / rolled textile materials with at least 80% polyester content
Max. media size: width:1625 mm / diameter: 250 mm / weight: 100 kg / thickness: 0.04–1 mm (specified per head height)
Head height setting: manual, 4 options
Max. printing speed: 61 m²/h
Max. print resolution: 1200 x 1200 dpi
Printhead: 2pcs staggered AccuFine (1600 nozzle)
Drop mass range: 3.8 pl – 24 pl
Ink type: DS3sublimation dye inks (1000 ml packs)
Ink colors: CMYK
Motorised winding/unwinding system:optional 30kg / 40kg / 100kg
RIP software: –
Recommended Working Environment: temperature: 22-30°C, humidity: 40-60% (max. fluctuation: 2 °C/h / 5% RH/h)
Size: 2770 x 895 x 1611 mm
Weight: 170 kg
